Operational transcription pipeline

Making noisy radio traffic searchable

Audio segmentation, competing preprocessing profiles, transcript selection, and domain vocabulary correction.

PythonSoXfaster-whisper
The problem
Noisy radio recordings were difficult to search, and general transcription models struggled with operational vocabulary.
My approach
I preserved the audio, segmented the stream, compared preprocessing profiles, and selected transcripts using confidence and plausibility signals.
The result
A configurable audio-to-text pipeline with daily logs, debugging artifacts, labeling, and a training path.

StatusBuilt transcription pipeline

My roleI designed the surrounding audio and quality-selection workflow and integrated the transcription model.

See what I delivered →

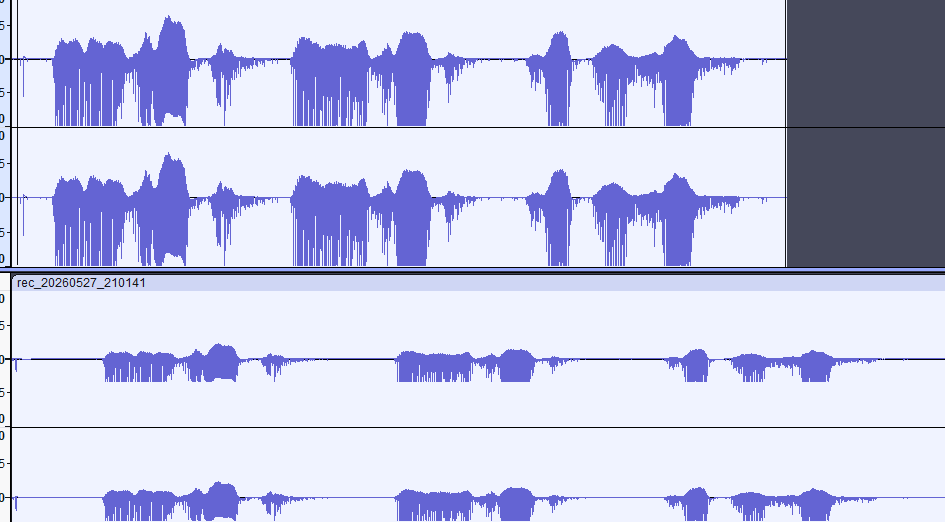

Captured audio displayed as stereo waveforms, showing speech-level changes and quieter intervals.
Captured radio audio · waveformOpen full image ↗

THE PROJECT IN CONTEXT

Radio traffic is useful operational information, but it is difficult to search after the conversation has passed. Warehouse recordings add another problem: noisy audio and terms that a general transcription model does not reliably recognize.

I built a Python pipeline around audio capture, segmentation, preprocessing, transcription, and result selection. The model supplies the transcription capability; the project work is in making that capability usable with a noisy, domain-specific input and retaining enough context to investigate mistakes.

The Work

Keep the input stable

The capture path uses one persistent SoX process to stream raw PCM audio into Python. Python handles level detection and splitting the stream into recordings. The design avoids repeatedly opening the capture device and avoids relying on a SoX silence effect that the project notes identify as problematic with virtual audio devices.

The recorder checks the environment and supports a continuous-monitor mode as well as an interactive shell. Configuration controls capture settings, output locations, and the transcription model. I kept those choices outside the main processing logic so the capture setup can change without rewriting the whole pipeline.

Compare alternatives for the same recording

The original audio is preserved. The pipeline processes copies with configured SoX profiles, then runs faster-whisper on each version. The documented configuration includes baseline, denasal, and narrowband approaches. Different preprocessing choices can help or hurt a recording, so selection happens after transcription rather than assuming one filter always wins.

The implementation records preprocessing and transcription failures alongside successful attempts. When debugging is enabled, it saves the processed audio, transcripts, and JSON metrics. That makes it possible to compare what the model heard across profiles rather than judge only the final text. Multiple attempts also add processing cost, so this is a quality-oriented design tradeoff.

Treat confidence as a signal, not proof

The scoring function combines average log probability, no-speech probability, compression ratio, and text plausibility checks. It penalizes repeated phrases, known unwanted output patterns, and implausible word rates. The highest-scoring attempt is selected, with a minimum-score check for heavily penalized results.

Domain corrections address common warehouse vocabulary and number formatting before the result is appended to the daily log. These rules can make the text more useful, but they are still heuristics. A confident model can be wrong, and a vocabulary substitution can also be wrong. The retained source and debug artifacts support review when the output needs to be checked.

How a recording becomes a reviewable transcript
StageProcessing decisionWhat remains available for review
CaptureKeep one SoX stream open and segment it in PythonOriginal audio recordings
PreprocessRun configured profiles on copies of the same recordingProcessed audio and failures when debugging is enabled
Transcribe and scoreApply number and domain corrections, then compare model signals, repetition, and plausible word ratesAlternative transcripts and JSON metrics when debugging is enabled
Select and logChoose the highest-scoring attempt, check its minimum score, and append accepted textDaily log plus source audio for checking uncertain results

Keep a path for learning from labeled examples

The recorder includes a guided labeling mode, and a companion training script reads labeled audio-text pairs for LoRA fine-tuning. The training path is designed for a constrained GPU and includes conversion for the inference runtime. That creates a way to adapt the model if enough good examples are available.

I connected capture, model integration, domain handling, and result selection into one workflow. Preserving the audio and alternative attempts makes it possible to investigate a missed term or incorrect number and identify examples that could improve later training.

THE DELIVERABLES

What I delivered

  • Continuous audio capture and segmentation pipeline
  • Configurable preprocessing and transcription attempts
  • Confidence and unwanted-output screening with daily logs
  • Debug artifacts, labeling mode, and a LoRA training path

A CLOSER LOOK

Project exhibits

Route the audio before processing it

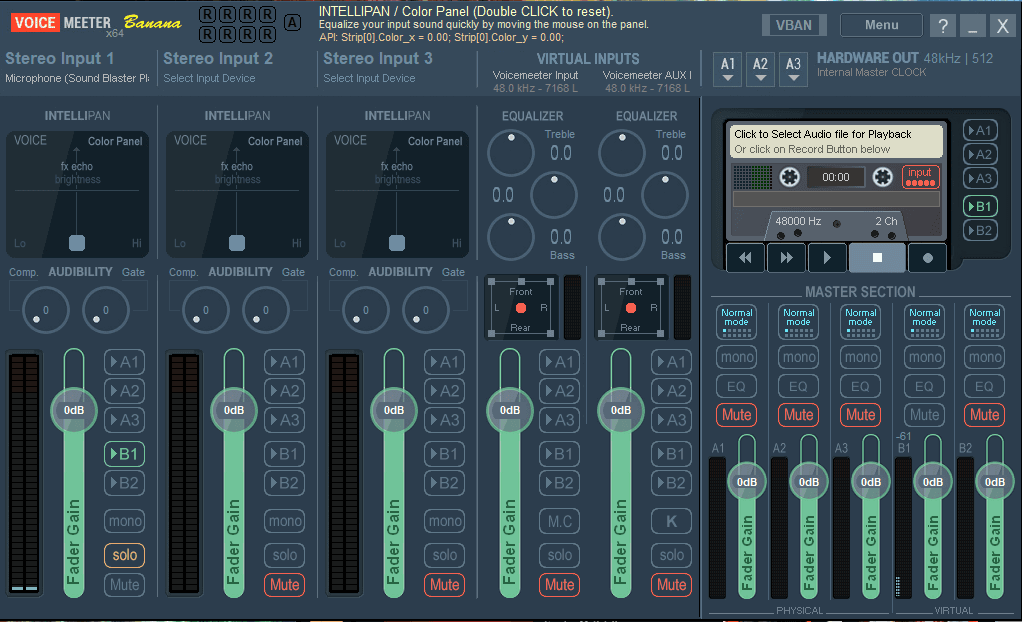

Voicemeeter Banana is the third-party audio-routing tool used in the capture setup. Its input and routing controls support the recording stage of the pipeline.

Voicemeeter Banana audio mixer showing stereo inputs, virtual inputs, routing controls, and output levels.
Capture setup · third-party Voicemeeter Banana interfaceOpen full image ↗

THE OUTCOME

Where the work stands

The pipeline produced searchable text from radio recordings with configurable preprocessing and domain handling. It provides a way to inspect alternative attempts when transcription quality is uncertain.

SCOPE AND LIMITATIONS

What the work establishes

Transcription accuracy and the effect of fine-tuning have not been measured against a labeled evaluation set.

Confidence and heuristic checks cannot guarantee a correct transcript.
